AX14 GNSS anti-jamming antenna 4-channel ultra-compact 225g

AX14 GNSS Anti‑Jamming CRPA System | 4‑Channel Ultra‑Compact Multi‑Jam Protection

AX14 4‑channel GNSS anti‑jamming CRPA system, ultra-lightweight, compact design, superior suppression performance for small UAV and space-limited navigation missions.

Model Specifications

Ant-jamming Parameters

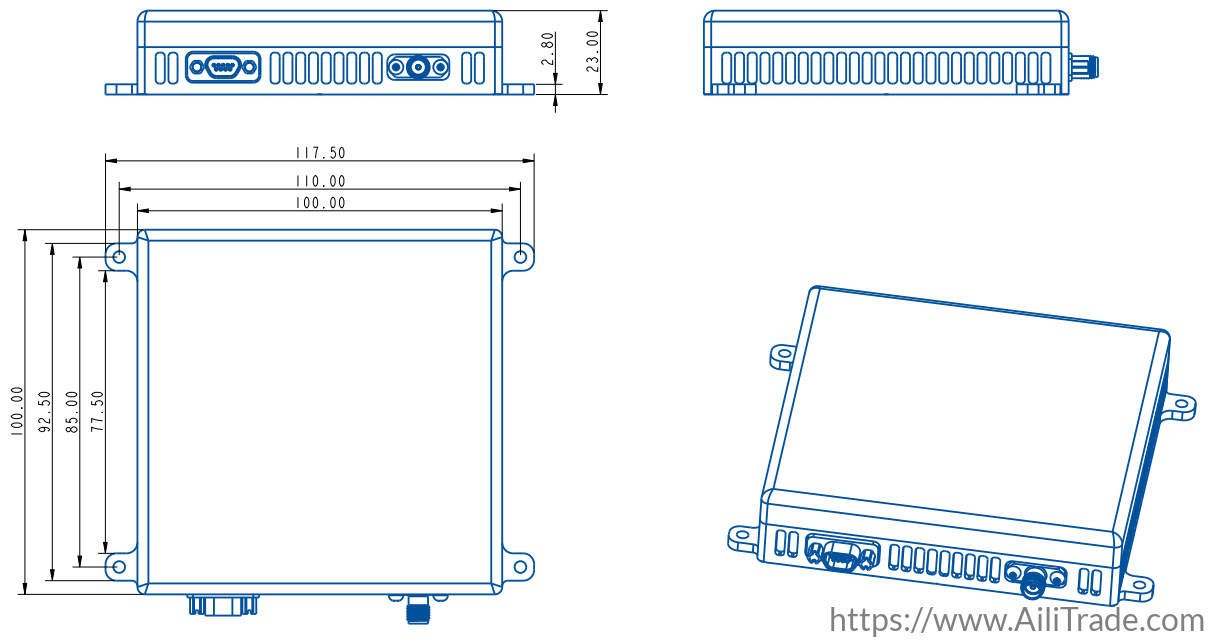

Dimensions (mm) 100×100×23
Weight (g) 225
Power Consumption (w) < 10 W
Antenna Array 4 Array CRPA Antenna
Simultaneous Independent Nulling 3
Simultaneous Active Bands GPS L1/GALILEO E1/BEIDOU B1
Nominal Wideband Suppression > 95 dB J/S performance based on performance of typical GPS receivers, in the presence of 3 spatially diverse broadband jammers
Connectors 1 x SMA Female, 1 x J30J 9-pin Socket
Operating Voltage 12 V DC
Operating Temperature -40 °C to +70 °C
Data Interfaces Serial
  • Export documentation support
  • Bulk orders & stable lead time
  • After-sales & spare parts support
Category:

Prefer a quotation for bulk export or specific trims?

Description

1. General Description

AX14 Anti-Jam CRPA System supports critical navigation missions by providing stable, jam-free GNSS signals for space-constrained and lightweight platforms.

Equipped with a high-precision 4-array CRPA antenna, the system guarantees the normal operation of GNSS receivers even in the presence of multiple jamming sources, delivering reliable anti-jamming performance in a compact form factor.

AX14 Anti-Jam CRPA System can be deployed in various flexible configurations, and is fully compatible with both civil and military GPS receivers for land, sea, air platforms (including small unmanned aerial systems) and fixed installations. The product integrates an embedded GNSS receiver that supports all global satellite constellations.

2. How It Works

AX14 mitigates RF interference by creating targeted nulls in the antenna gain pattern toward the direction of jamming sources, providing significant anti-jam protection even in dynamic multi-jammer scenarios. The system outputs a protected, standard Radio Frequency (RF) signal that is completely free from jamming, and is suitable for direct input to both modern and legacy GNSS receivers without additional modification.

3. Key Benefits

  • Immediate availability for urgent operational and deployment needs
  • Simple, tool-free assembly for easy installation or in-field retrofit
  • Full compatibility with all types of external GPS receivers and vehicle navigation systems
  • Minimal integration training required for fast deployment
  • Ultra-lightweight design at only 225g
  • Ultra-compact size of 100×100×23mm for space-constrained platforms
  • Superior interference suppression performance in a small footprint

4. Application Areas

  • Fixed Winged Aircraft
  • Rotary Wing Aircraft
  • Unmanned Autonomous Systems (UAS), especially small/lightweight UAVs
  • Armored Vehicles
  • Naval Platforms, Coast Guard Platforms

Reviews

There are no reviews yet.

Be the first to review “AX14 GNSS Anti‑Jamming CRPA System | 4‑Channel Ultra‑Compact Multi‑Jam Protection”

Your email address will not be published. Required fields are marked *

Related products

FAQ

What makes the AX14 anti-jamming system different from 8-channel models?

The AX14 features a 4-array CRPA design optimized for ultra-compact, lightweight platforms, delivering reliable anti-jamming performance in a much smaller footprint (100×100×23mm) and lower weight (225g) compared to 8-channel systems, making it ideal for space-constrained applications like small UAVs and light aircraft.

What are the key physical specifications of the AX14?

The AX14 has an ultra-compact size of 100×100×23mm, an ultra-light weight of only 225g, operates on 12V DC power, has a power consumption of <10W, and an operating temperature range of -40℃ to +70℃, adapting to harsh working environments.

How many jamming sources can the AX14 suppress simultaneously?

The AX14 is equipped with a 4-array CRPA antenna, which can create up to 3 simultaneous independent nulls toward jamming sources, providing effective anti-jamming protection against up to 3 spatially diverse broadband jammers in dynamic multi-jammer scenarios.

What platforms is the AX14 best suited for?

The AX14 is optimized for lightweight and space-constrained platforms, including small/lightweight unmanned autonomous systems (UAS), light fixed-wing and rotary-wing aircraft, armored vehicles, naval platforms, and coast guard platforms, where size and weight are critical factors.

Is the AX14 compatible with military GPS receivers?

Yes, the AX14 is fully compatible with both civil and military GPS receivers, as well as all types of vehicle navigation systems, and can be deployed in various flexible configurations to meet different platform requirements.

What type of output signal does the AX14 provide?

The AX14 outputs a protected, standard Radio Frequency (RF) signal that is completely free from jamming and interference, which is suitable for direct input to both modern and legacy GNSS receivers without the need for additional hardware modifications.

Does the AX14 support all satellite constellations?

Yes, the AX14 integrates an embedded GNSS receiver that supports all global satellite constellations, including GPS, Galileo, BeiDou, and GLONASS, ensuring wide compatibility with different navigation systems worldwide.
